DWK S series press brake

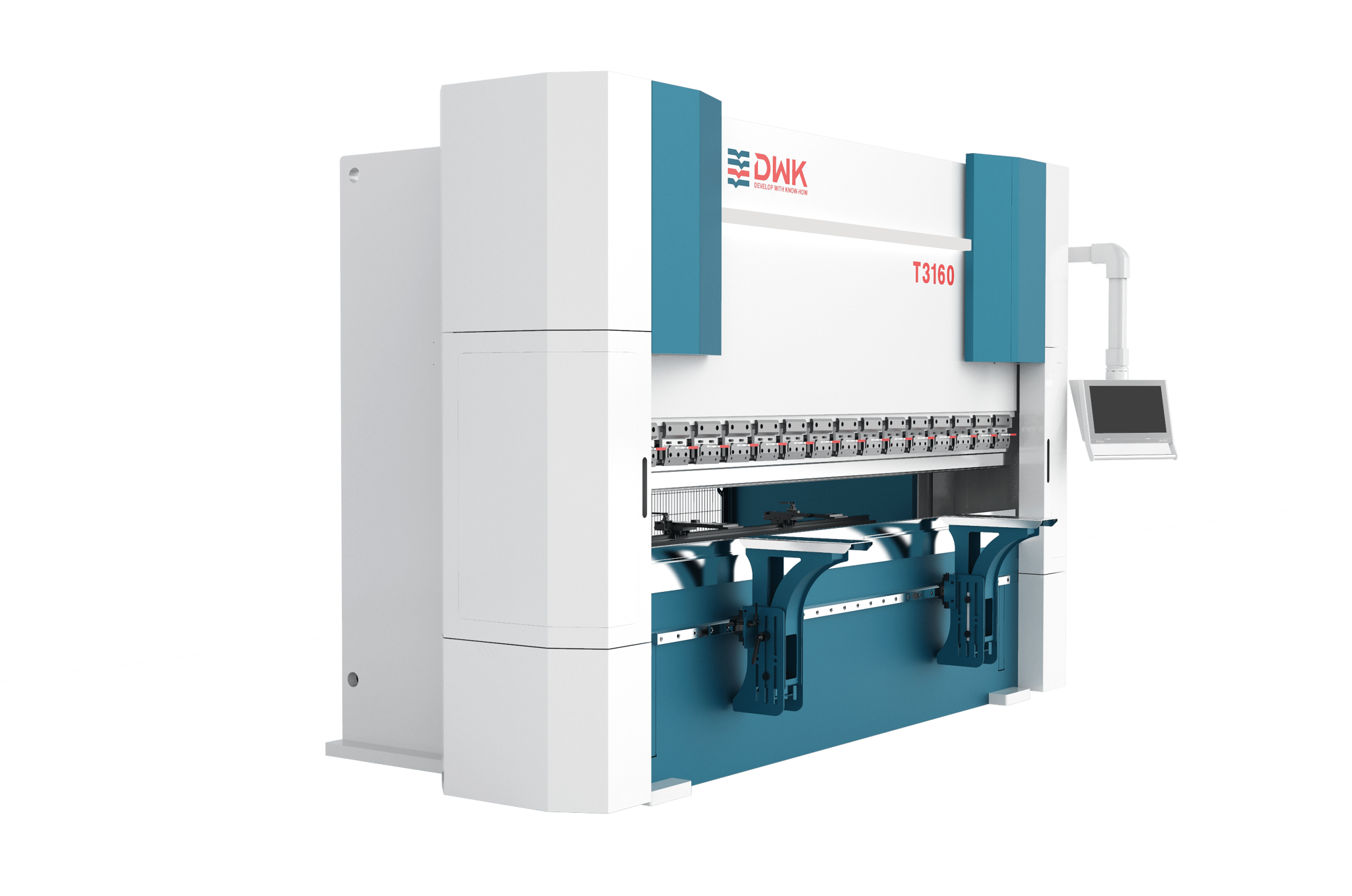

DWK-T press brake

  • DWK-T Series C-Frame Press Brake

High Precision

Closed frame, no throat, minimal column angle deformation, high machine angle rigidity, ensuring ultra-high precision of parts

Solid frame, enduring precision.

Undergoes high-temperature annealing or vibration aging treatment

Powerful Functions

With the crowning system, one-touch release clamps, offline software, multi-functional pedal switch, rear photoelectric protection, etc.

User Friendly

Ergonomic and user-friendly design for less fatigue in operation.

  • Nominal Force (KN)
    600

    X Axis travel（mm）
    500
    Bending Length (mm)
    1500

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    1200

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    215

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    525

    Z Axis travel（mm）
    350
    Down Speed (mm/s)
    200

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		18
    		Length (mm)
    		2300
    Return Speed  (mm/s)
    		200
    		Width (mm)
    		1400
    Workpiece straightness（mm）≤±0.3/1000
    		Height (mm)
    		2550



    		*The right to modify dimensions, design and equipment reserved.


  • Nominal Force (KN)
    600

    X Axis travel（mm）
    500
    Bending Length (mm)
    2050

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    1700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    215

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    525

    Z Axis travel（mm）
    750
    Down Speed (mm/s)
    200

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		18
    		Length (mm)
    		3560
    Return Speed  (mm/s)
    		200
    		Width (mm)
    		1550
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2500






  • Nominal Force (KN)
    600

    X Axis travel（mm）
    500/
    Bending Length (mm)
    2550

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2100

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    215

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    525

    Z Axis travel（mm）
    1250
    Down Speed (mm/s)
    200

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		18
    		Length (mm)
    		3300
    Return Speed  (mm/s)
    		200
    		Width (mm)
    		1400
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2550






  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    2600

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2100

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    535

    Z Axis travel（mm）
    1250
    Down Speed (mm/s)
    200

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		17
    		Length (mm)
    		3300
    Return Speed  (mm/s)
    		200
    		Width (mm)
    		1700
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2700






  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    535

    Z Axis travel（mm）
    1850
    Down Speed (mm/s)
    220

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		17
    		Length (mm)
    		4000
    Return Speed  (mm/s)
    		210
    		Width (mm)
    		1700
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2700






  • Nominal Force (KN)
    1000

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    535

    Z Axis travel（mm）
    2850
    Down Speed (mm/s)
    220

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		17
    		Length (mm)
    		5000
    Return Speed  (mm/s)
    		180
    		Width (mm)
    		1700
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2700






  • Nominal Force (KN)
    1600

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    535

    Z Axis travel（mm）
    1850
    Down Speed (mm/s)
    180

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		15
    		Length (mm)
    		4000
    Return Speed  (mm/s)
    		180
    		Width (mm)
    		1750
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2700






  • Nominal Force (KN)
    1600

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    535

    Z Axis travel（mm）
    2850
    Down Speed (mm/s)
    180

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		14
    		Length (mm)
    		5000
    Return Speed  (mm/s)
    		180
    		Width (mm)
    		1750
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2700






  • Nominal Force (KN)
    2250

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    575

    Z Axis travel（mm）
    1850
    Down Speed (mm/s)
    160

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		12
    		Length (mm)
    		4000
    Return Speed  (mm/s)
    		140
    		Width (mm)
    		1960
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2900






  • Nominal Force (KN)
    2250

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3700

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    230

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    575

    Z Axis travel（mm）
    2850
    Down Speed (mm/s)
    170

    Z Axis working speed（mm/s)
    1200
    Pressing  (mm/s)
    		12
    		Length (mm)
    		5000
    Return Speed  (mm/s)
    		140
    		Width (mm)
    		1960
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		2900






  • Nominal Force (KN)
    3200

    X Axis travel（mm）
    500
    Bending Length (mm)
    3100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    2450

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    1850
    Down Speed (mm/s)
    110

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		8
    		Length (mm)
    		4217
    Return Speed  (mm/s)
    		100
    		Width (mm)
    		2020(w/o support)
    2250(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3120






  • Nominal Force (KN)
    3200

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3420

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    2850
    Down Speed (mm/s)
    150

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		8
    		Length (mm)
    		5217
    Return Speed  (mm/s)
    		110
    		Width (mm)
    		2020(w/o support)
    2250(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3120






  • Nominal Force (KN)
    4000

    X Axis travel（mm）
    500
    Bending Length (mm)
    4100

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3420

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    250

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    2850
    Down Speed (mm/s)
    100

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		8
    		Length (mm)
    		5107
    Return Speed  (mm/s)
    		100
    		Width (mm)
    		2444(w/o support)
    2758(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3654






  • Nominal Force (KN)
    5000

    X Axis travel（mm）
    500
    Bending Length (mm)
    6000

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    5100

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    315

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    4250
    Down Speed (mm/s)
    110

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		8

    		Length (mm)
    		7070
    Return Speed  (mm/s)
    		100
    		Width (mm)
    		2577(w/o support)
    3060(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3370






  • Nominal Force (KN)
    6000

    X Axis travel（mm）
    500
    Bending Length (mm)
    6000

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    5100

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    315

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    4250
    Down Speed (mm/s)
    110

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		8
    		Length (mm)
    		7070
    Return Speed  (mm/s)
    		100
    		Width (mm)
    		2777(w/o support)
    3460(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3370






  • Nominal Force (KN)
    6000

    X Axis travel（mm）
    500
    Bending Length (mm)
    4000

    X Axis working speed（mm/s)
    400
    Column Distance (mm)
    3450

    R Axis travel（mm）
    200
    Ram Stroke  (mm)
    315

    R Axis working speed（mm/s)
    100
    Opening Height (mm)
    585

    Z Axis travel（mm）
    2450
    Down Speed (mm/s)
    110

    Z Axis working speed（mm/s)
    600
    Pressing  (mm/s)
    		7
    		Length (mm)
    		5070
    Return Speed  (mm/s)
    		90
    		Width (mm)
    		2777(w/o support)
    3460(w support)
    Workpiece straightness（mm）≤ ± 0.3/1000
    		Height (mm)
    		3570





DOWNLOAD PRESS BRAKE CATALOG RIGHT NOW!

CALL: +86-18602611305
DOWNLOAD Contact us

Rich options

列表图

Angle Detection System

Online real-time detection of bending angle，to provide immediate feedback to CNC system, which ensure the consistency of bending angle of each batch.
列表图

Laser Protection

The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and maintains the high level of the productivity of the DWK press brake.
列表图

Sheet Follower

The DWK press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake at the height of the bending line.
列表图

Movable Combo Die Mechanism for Bending & Hemming

The bending and hemming lower die combo realizes the replacement automatically, which avoids the manual movement of material or the changing of lower die, and eventually alleviate the workload of operators. The handling process of sheet metal is simplified and the productivity is greatly improved. This action can be automatically completed according to the instructions from CNC system.

Learn more about how press brakes work

Watch a video on press brake operation and other useful information.
